Haro Shift Plus i/O 5 -
The Shift Plus i/O 5 is a super serious and powerful off road contender. Its built upon a Plus size 4 bar link frame with 140mm of travel on the rear and balanced with a Suntour Aion 140mm travel Boost fork on the front. Shift Plus i/O 5 is built with Shimano's revolutionary e8000 mtb specific mid motor drive system that delivers a whopping 250 watts of power, 70 Nm of torque, and 504 watt battery with a 4 hour recharge from flat. A Shimano 10 speed 1X set up keeps things simple. Kenda Havoc Pro 27.5" x 2.8" Plus size tires with U-40 double wall rims keeps things rolling, while a Shimano M395 hydraulic disc brake set brings it all to a complete stop. Shift Plus i/O 5 is one of the most versatile yet affordable eMountain bikes on the market today.
Frame Components |
|
Frame |
Shift Plus I/O X6 Aluminum frame for Shimano STePS E8000, 4-Bar linkage, vertical shock, 140mm travel, Enduro Bearings |
Rear shock |
Rockshox Monarch R 200x57, LL Tune |
Fork |
SR Suntour Aion 35mm, Boost LOR DS 27.5" Plus, 140mm travel, 15mm Thru-Axle, w/ Hydraulic Lockout |
Sizes |
Mens - 14.5" / 16" / 18" / 20" / 22" |
Headset |
FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing |
Drive Train Components |
|
Crankset |
Shimano E8000, forged, 38T Chainring |
Front Derailleur |
N/A |
Rear Derailleur |
Shimano Deore, RD-6000, 10-spd, Shadow Plus |
Cassette |
Shimano Deorre HG-500, 10-spd, 11-42T |
Chain |
KMC X10-E |
Pedals |
N/A |
Drive Unit |
Shimano STePS E8000, 70Nm Torque |
Battery |
Shimano STePS E8010, 500Wh |
Control Center Components |
|
Handlebar and Stem |
Pivit X6 Alloy riser bar, 15mm Rise w/ Pivit 3D Forged short X6 alloy stem |
Grips |
WTB Ace Dual Clamps |
Shifter |
Shimano Deore RapidFire+ 10-spd |
Saddle |
WTB Rocket Sport |
Seat Post |
Pivit X6 Alloy 2-Bolt 31.6 x 350mm |
Wheelset Components |
|
Hubset |
Pivit Alloy disc Boost, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle |
Rims |
Weinmann U-40 TL, Tubeless Ready, 27.5"x40mm, Double Wall |
Spokes |
Stainless 14g |
Tires |
Kenda HAVOC 27.5x2.8", 120tpi, Aramid beads, Tubeless Compatible |
Braking Components |
|
Brakeset |
Shimano M395 Hydraulic Disc, 180mm Rotors |
Levers |
Shimano M396 Hydraulic |
Extras |
Shimano Chain Guide, Tubeless Valves, Dropper post routings, Battery charger, Battery Lock |
Sizes XS=14.5", S=16", M=18", L=20", XL=22"

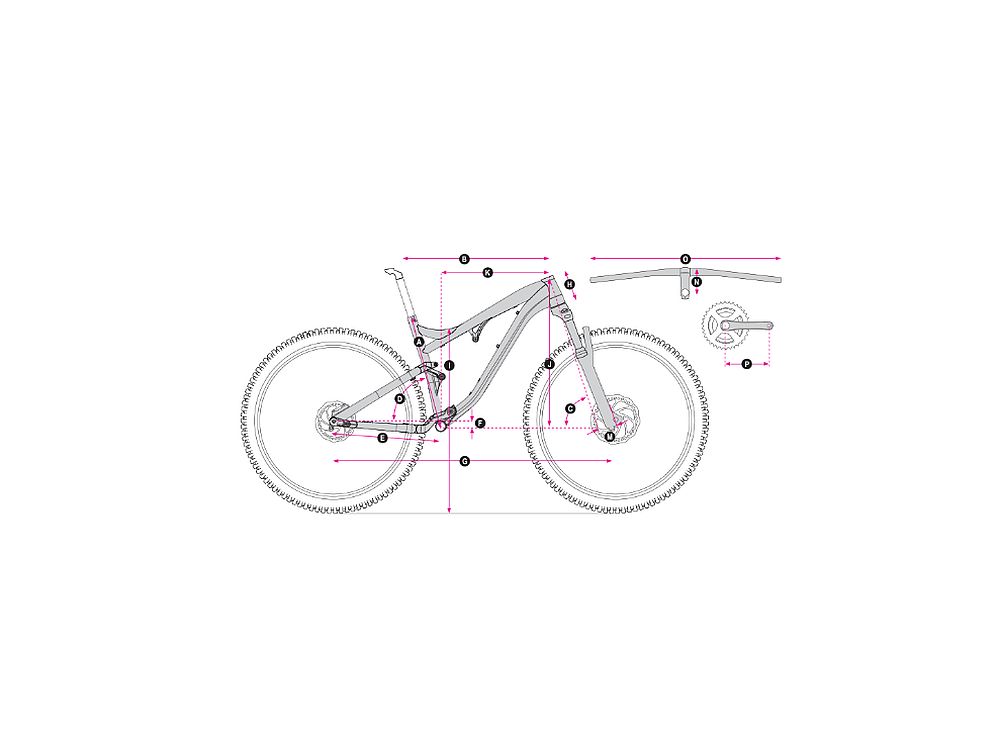

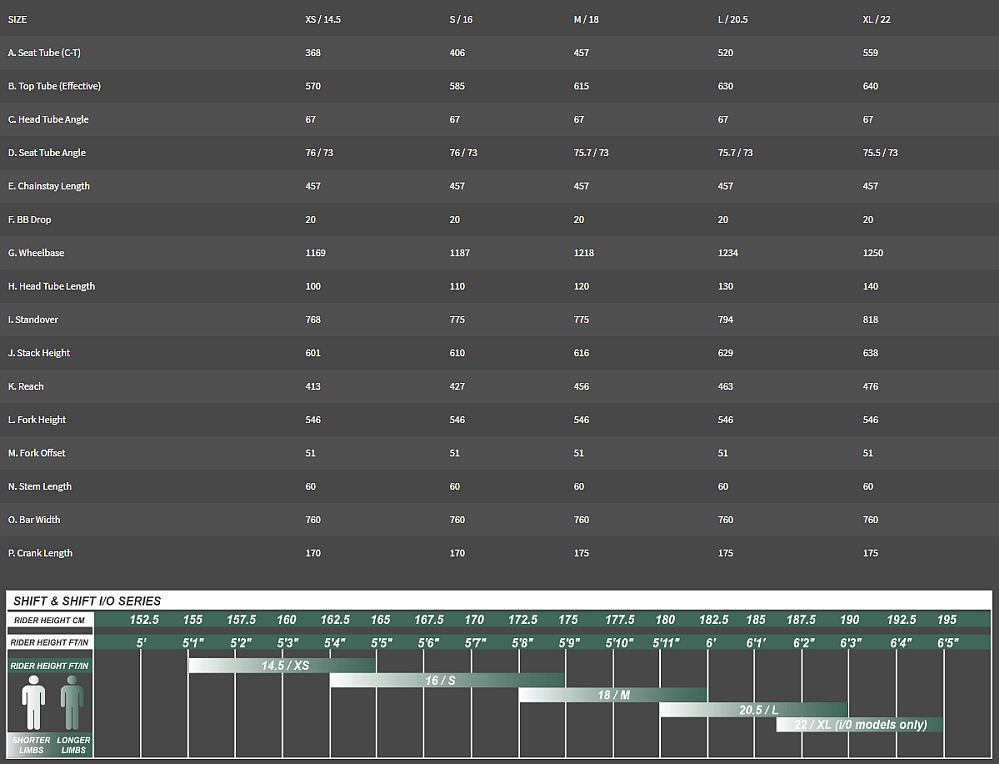

Geometri - see pictures
