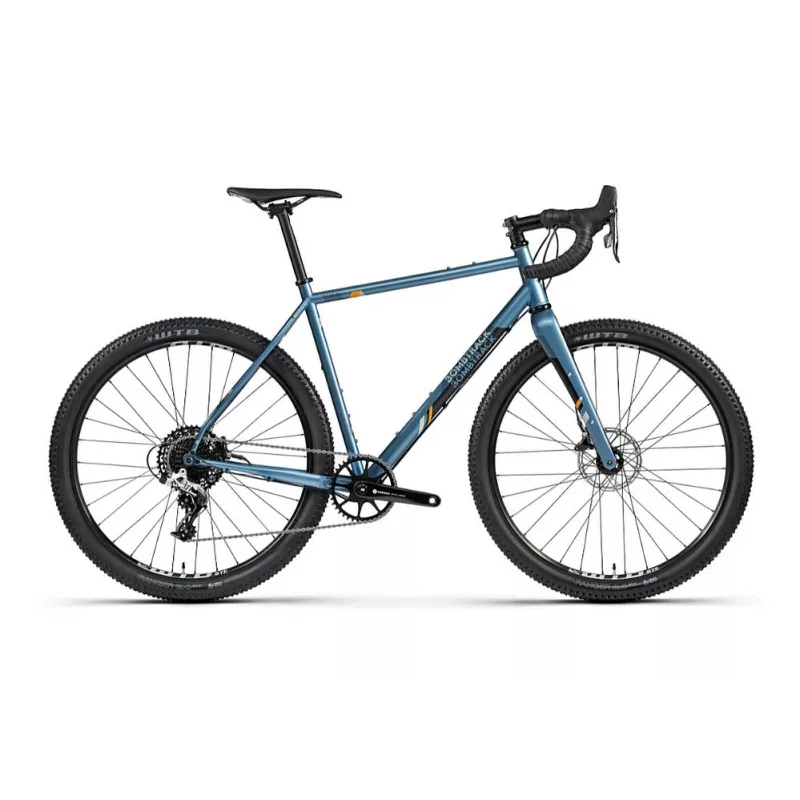

Bombtrack Hook EXT Grey Blue

Bombtrack EXT

-  Are you heading down the path least travelled? For a drop handlebar bike, the Hook EXT seldom faces terrain it cannot handle. A Columbus steel frame, a dedicated carbon fork and a sturdy 27.5’’ wheelset equip the EXT with an armoury to ride where other bikes would surely suffer. A Sram 1x11 Rival groupset suitably gives this machine the gears and brakes to match.

As capable on backcountry campouts as it is on post-work blasts, the Hook EXT remains the choice when you’re unsure of the terrain, but know you want to have fun riding it.

 VIDEO:

 Bombtrack Hook 1 bike

Highlights
Columbus Cromor Double butted heat treated crmo frame with tapered headtube, rear light mount, rack and fender mounts and T47 bottom bracket.

Full Carbon tapered fork with internal light cable routing, thorough axle and triple cage/rack mounts.

Bombtrack Tau 12 mm thorough axle hubs.

Sram Rival 1- 1x11 shifter, levers, rear derailleur, Sram Rival 160 mm brakes.

New Bombtrack Lyer 30 mm alloy crank with direct mount 40t chainring.

 Top tube bag direct mounts, triple cage mount on down tube and seat tube for optimized bottle position, bottle cage mounts underneath the down tube.

Specifikace

Rám:

WHEEL SIZE 700C
FRAME 4130 double butted, crmo frame, heat treated front triangle, replaceable hanger, rack / fender mounts, 68 mm T47 shell
FORK aluminum disc fork, 1.1/2'' - 1.1/8'' tapered steerer, with rack / fender mounts, internal hub dynamo cable routing
HEADSET FSA NO.21/12B/44 sealed external aheadset, 1.1/2'' - 1.1/8''
BB T47 sealed BB for 30 mm spindle


Komponenty:
Frame COLUMBUS CROMOR double butted tubing, TA, rack / fender mounts, internal light cable routing, rear light mount, 86.5 mm T47 BB shell
Fork Full carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts (can double as fender mounts),internal hub dynamo cable routing
Handlebar BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Grips BOMBTRACK ESCAPE bar tape
Stem BOMBTRACK ROAM forged aluminium stem, -7°
Headset Sealed external aheadset, 1.1/2'' - 1.1/8''
Levers SRAM RIVAL 1 double tap hydraulic
Shifter SRAM RIVAL 1 double tap 1 x 11
Brakes SRAM RIVAL flat mount hydraulic disc brakes with 160 mm rotors
Crankset BOMBTRACK LYER forged aluminium crank, direct mount interface
(SRAM compatible),30 mm spindle
BB BOMBTRACK T47 internal sealed BB for 30 mm spindle
Pedals -
Chain KMC X11 EPT Anti Rust chain, 1/2'' x 11/128'', 114L
Chainring CNC machined aluminium, narrow-wide, 40 T
Cassette SRAM PG-1130 11-speed, 11 - 42 T
Front derailleur -
Rear derailleur SRAM RIVAL 1, clutch, long cage
Front hub BOMBTRACK TAU sealed hub, 6-bolt disc
Rear hub BOMBTRACK TAU sealed hub, 11-speed, 6-bolt disc
Through axle 12 x 100 mm / 12 x 142 mm
Front rim WTB ST Light i25 double wall, TCS 2.0, 32h
Rear rim WTB ST Light i23 double wall, TCS 2.0, 32h
Saddle BOMBTRACK DART saddle
Seat post BOMBTRACK YEW aluminium seatpost, 27.2 mm x 300 mm
Seat clamp BOMBTRACK ORIGIN forged aluminium seat clamp, 29.8 mm
Front tire WTB RANGER TCS LIGHT / FAST ROLLING 27.5'' x 2.0'', tubeless ready
Rear tire WTB RANGER TCS LIGHT / FAST ROLLING 27.5'' x 2.0'', tubeless ready
Fender -
Rack -
Kickstand -
Light -
Weight 11.2 kg (size M)

Weight frameset 2710 g frame (size L, incl. TA, hanger) / 600 g fork (300 mm steerer, incl. TA)
Maximum rider weight 130 kg incl. Luggage

Frame build info:

BB standard T47 - 85.5 mm shell width
Headset standard (S.H.I.S.) EC34 / 28.6 | EC44 / 40
Headset crown race angle 36°
Fork max tire clearance w/o fender 650B x 52C / 700C x 45C
Frame max tire clearance w/o fender 650B x 52C / 700C x 40C
Maximum chainring clearance 1x 44 T with 45 mm chainline
Maximum chainring clearance 2x 50 / 36 T with 45 mm chainline
Seat post diameter 27.2 mm
Seat clamp diameter 29.8 mm
Front derailleur clamp diameter 28.6 mm
Brake mount front FM
Brake mount rear FM
Maximum rotor clearance front 160 mm
Maximum rotor clearance rear 160 mm
Front through axle 12 mm x 100 mm, 1.5 thread pitch
Rear through axle 12 mm x 142 mm, 1.5 thread pitch
ISO testing standard Road
Crankarm XS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor 152 mm
BCD crank Direct mount (Sram compatible)
Chainline 45 mm
Chainring offset 5 mm
Spoke length front wheel 274 mm, 275 mm
Spoke length rear wheel 273 mm, 275 mm
Spoke count (front / rear) 32 / 32
ERD 570 mm
Front hub PCD 58 mm
Rear hub PCD 58 mm
Front hub flange distance / offset 56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset 51 mm center to center / 8.8 mm
Stem length XS - S 80 mm / M 90 mm / L - XL 100 mm
Stem angle -7°
Headset spacers 1 x 10 mm, 2 x 5 mm
Seat post offset 0 mm
Seat post length 300
Derailleur hanger BT-DH-008
Frame small parts BT-CR-007 / BT-CR-006
Hub end caps front BT-HC-014
Hub end caps rear BT-HC-017
Cassette body BT-CB-006
Crankarm bolt BT-CRP-002
Through axle front BT-TA-F-601
Through axle rear BT-TA-R-602
